Part Number

• FleetRun: FR-BRKE293-1

Cross Reference Part Number

• Haldex: 4702Q / HV764702QG / TDA XSMA2124702QP / ABP MK4707Q 20ECON / ABP MK4702Q 23PREM / ABP MK4702Q 20PREM / TDAXKW3124702QP / TDASMA2124702QP / 8235-XKW3124702QP / 8235 XK2124702QP / RK4702QLH20M / NBS20-4702Q / NSNB2004702QK1T / TDA XK20014702QP / OTR4702QBLU / 8235-XK3124702QP
• Bendix: EX4702QBA230 / KT4702QBA230
• Meritor: KSMA312 4702QP / A63222M2223
• Automann: 148.4702Q.23 / 144.470280.3010
• TRP: NK4702QPR23M / RK4702QSTD23M / RK4702QLH23M / RS4702QPR23M / RS4702QSTD23M / RK4702QPR23M
• Freightliner / Alliance: TDA/XK2124702QP
• Gorilla Brake: GBEK4702Q23VSTA / GBNK4702Q23PR / GBE4702Q23PR / GBEK4702QMFL / GBNK4702Q23STD / GBEK4702QSBP23 / GBEK4702Q23PR / GBEK4702QAEX
• Misc. Industry Part Number: 4702Q / EN4702QPK / TDA XK2124702QP / 4702Q.23 / 312-4702QP

Specifications

• NO CORE NEEDED
• 4702 Style
• Fits: Meritor Q Plus Front / Steer Brake Systems
• These are NEW BRAKE SHOES / NOT REMANUFACTURED
• NS301 LINING – COMPARABLE TO 23K & 312 LINING
• Length / Brake Drum Diameter: 15.00 in. / 38.10 cm
• Width: 4.00 in. / 10.16 cm
• Axle Weight Rating: 23,000 lbs.

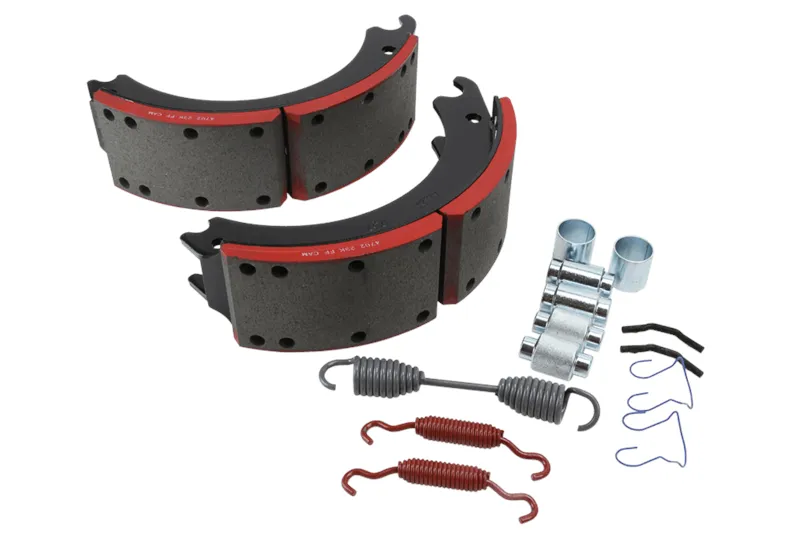

What's Included

• 2 ~ Shoes With Lining
• 1 ~ Hardware Kit: 1 Main Spring, 2 Side Springs, 2 Side Spring Pins, 2 S-Cam / Brake Camshaft Rollers, 2 S-Cam / Brake Camshaft Roller Springs, 2 Shoe Mount Bushings, 2 Shoe Mount Rollers

Not What Your Looking For? Check Out These Brake Shoe Kits

Overview

Brake Shoe Kits are crucial to the drum / shoe style brake system and are universal across all applications and are used in various brake systems on tractors / trucks, trailers and dollies. Our brake shoe kits are made with quality in mind, meeting or exceeding OEM standards.

The thickness of the brake lining and pads of steering axle brake shoes on a truck, truck-tractor or bus “shall not be less than 0.1875 in. or 4.8 mm at the shoe center for a shoe with a continuous strip of lining. The thickness of the brake lining and pads of non-steering axle brake shoes on an air-braked commercial motor vehicle should not be thinner than 0.25 in. or 6.4 mm (this measurement is taken at the center of the brake shoe). If disc brakes are used, the minimum thickness is 0.125 in. or 3.2 mm.

VMRS Code

• 013-017-007
